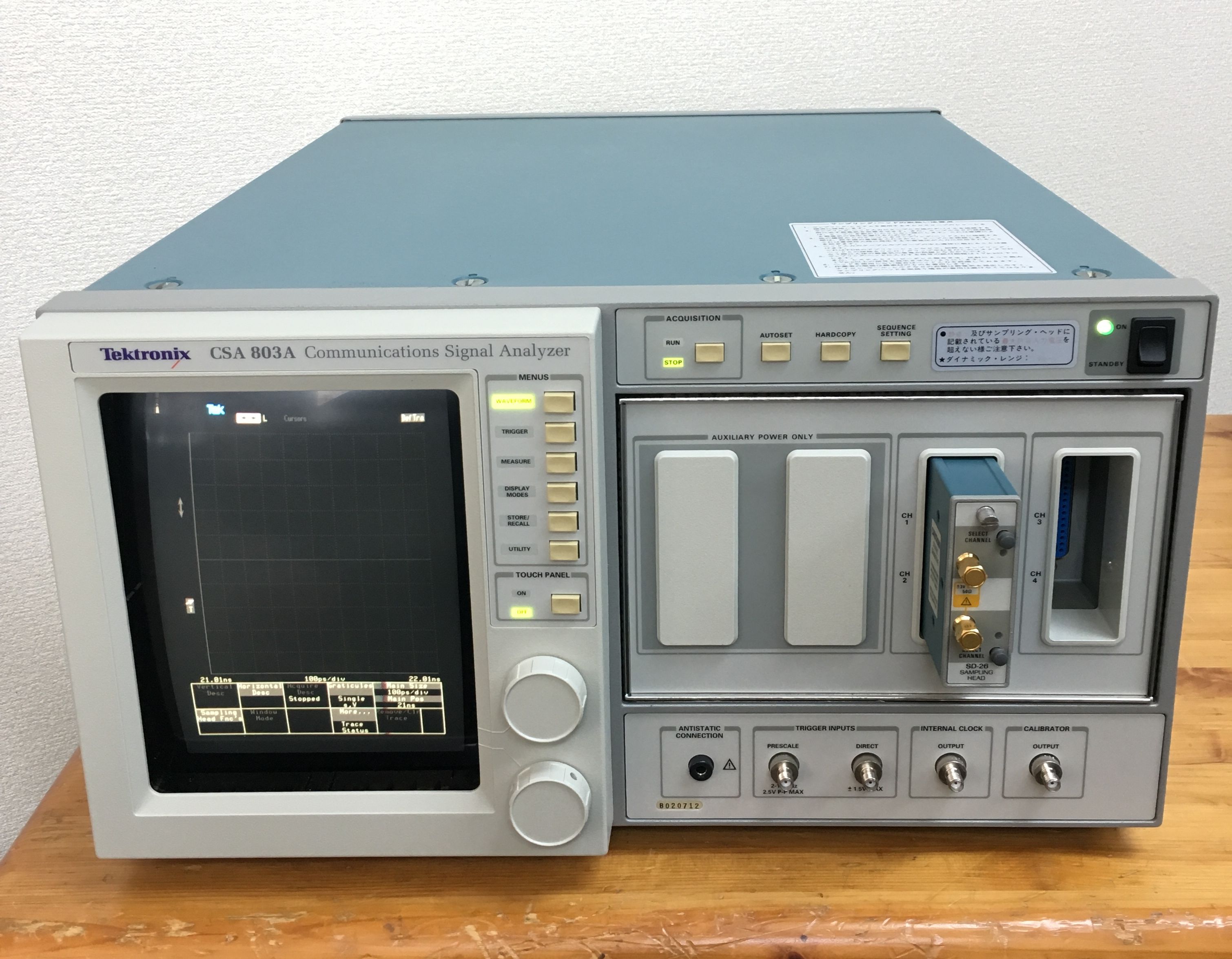

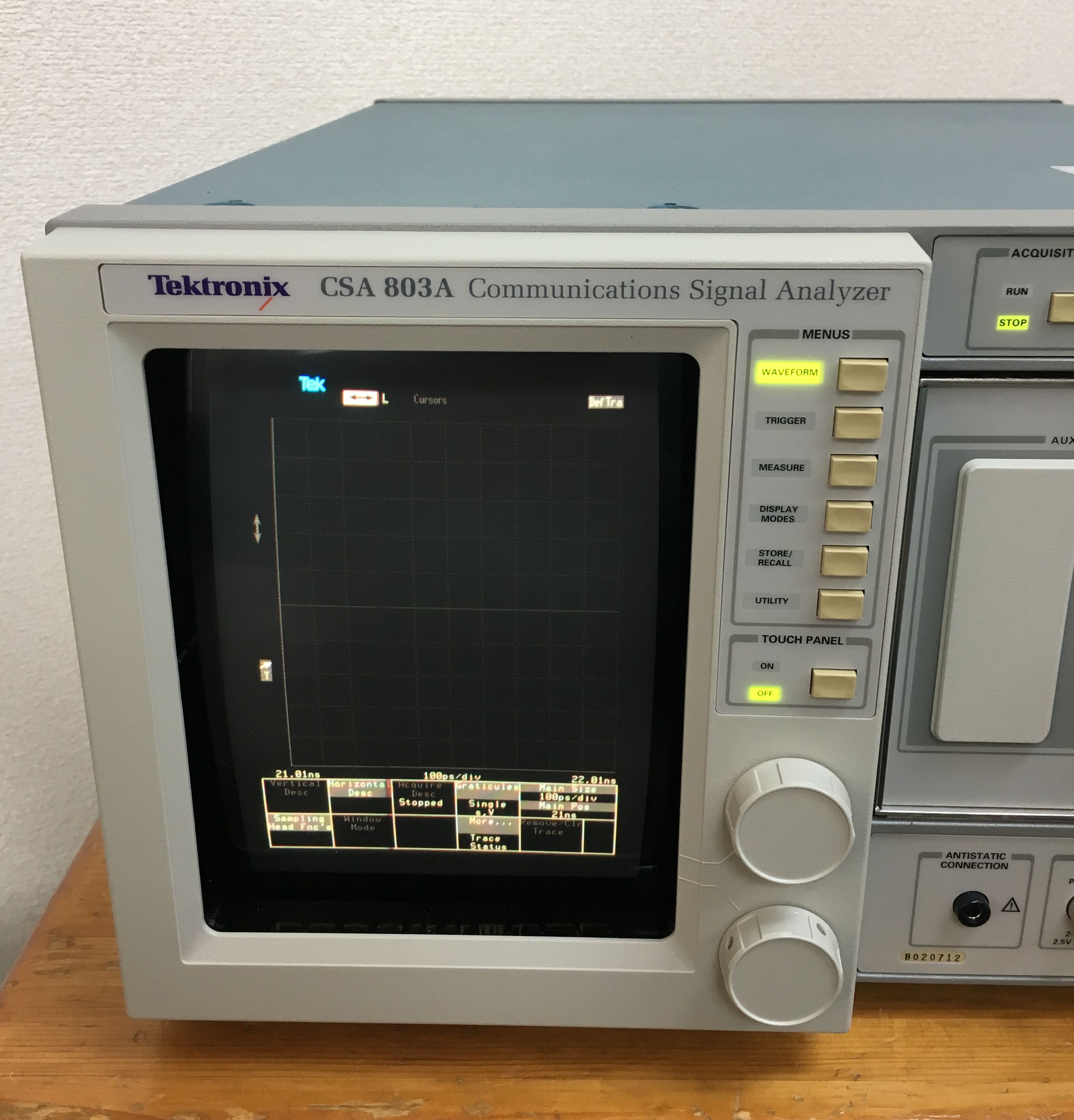

Tektronix CSA803A Comm. Signal Analyzer, DC - 50 GHz (M/F)

This Analyzer is a graph displaying device, it draws a graph of an electrical signal.

In most applications, the graph shows how signals change over time the vertical (Y) axis represents voltage and the horizontal (X) axis represents time.

The intensity or brightness of the display is sometimes called the Z axis.

This unit's simple graph can tell you many things about a signal, such as the time and voltage values of a signal, the frequency of an oscillating signal, the “moving parts” of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.

Features:

• Frequency Range: DC to 50GHz
• Form Factor: Benchtop
• Bandwidth: 50GHz
• Simultaneous Maximum Sampling Rate/ch of 200KSa/s
• Maximum Vertical Sensitivity of 0.01mV/div
• Rise time of 7ps

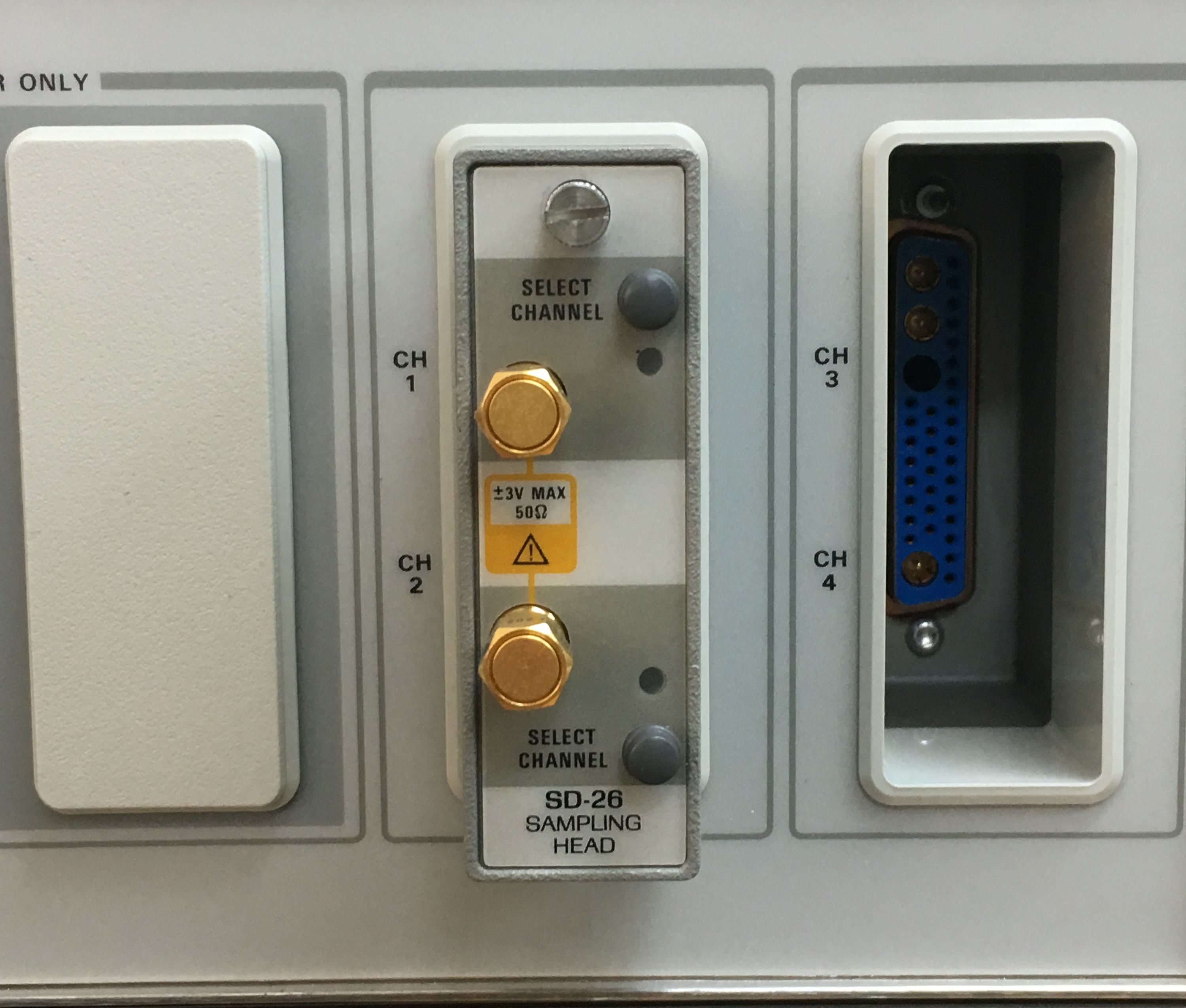

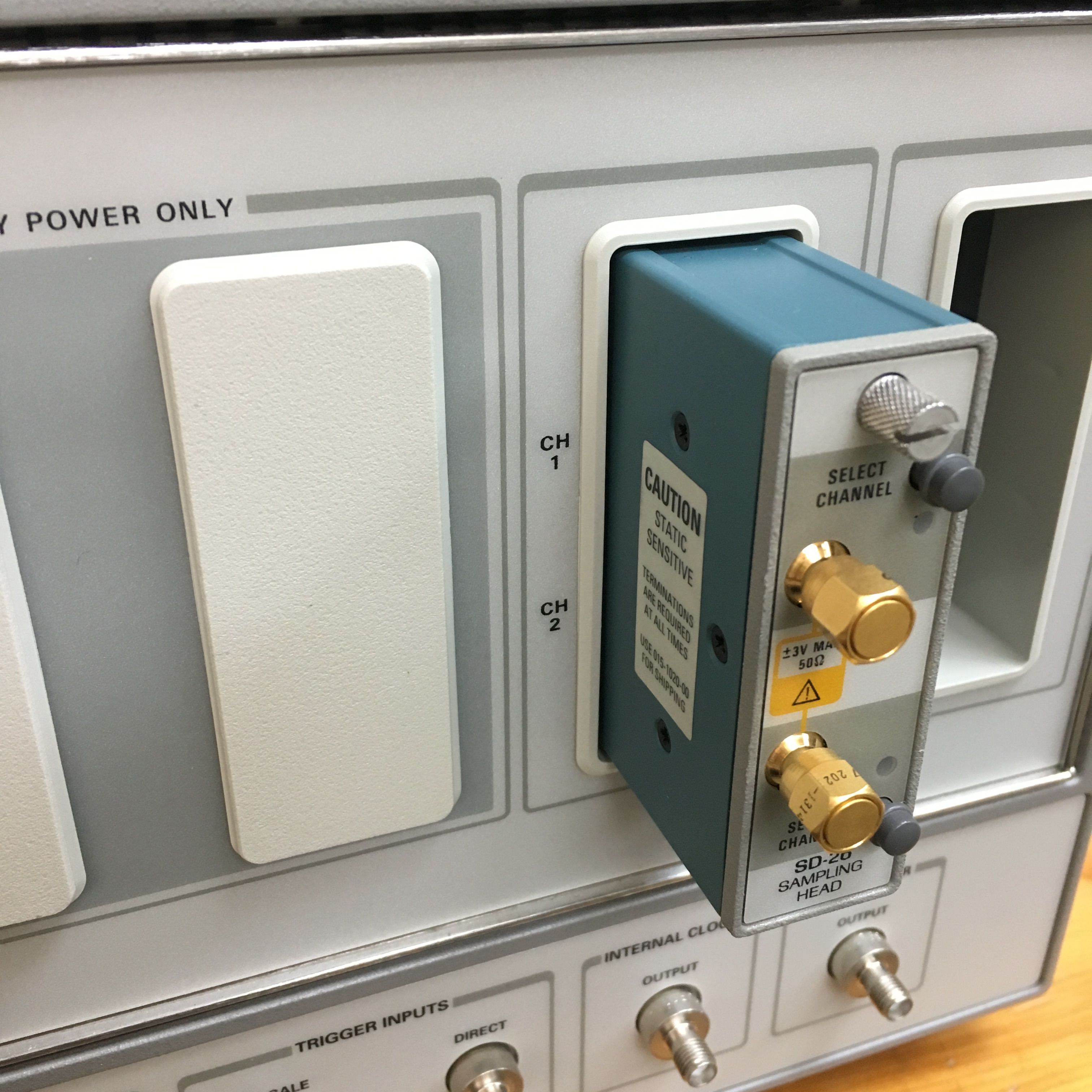

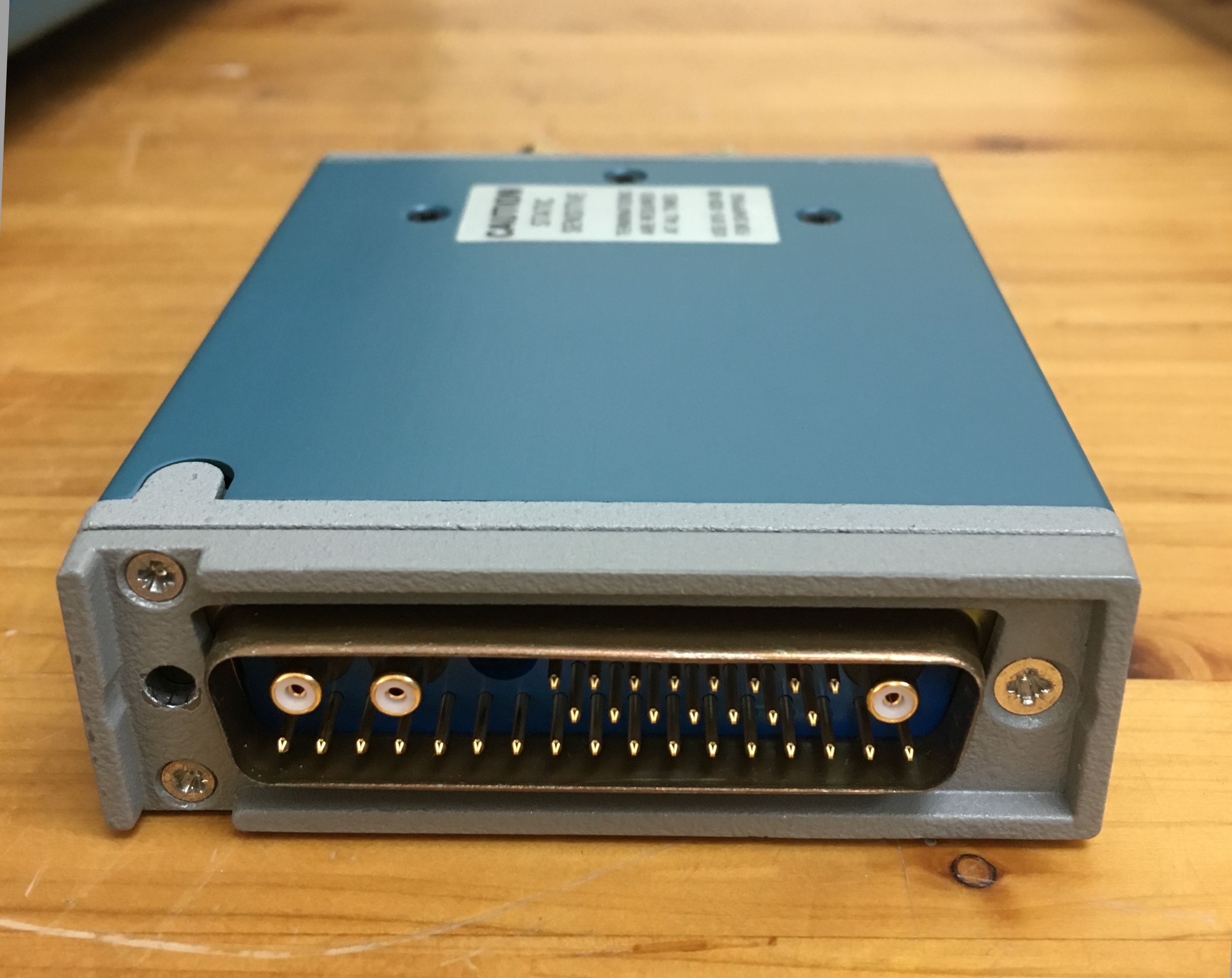

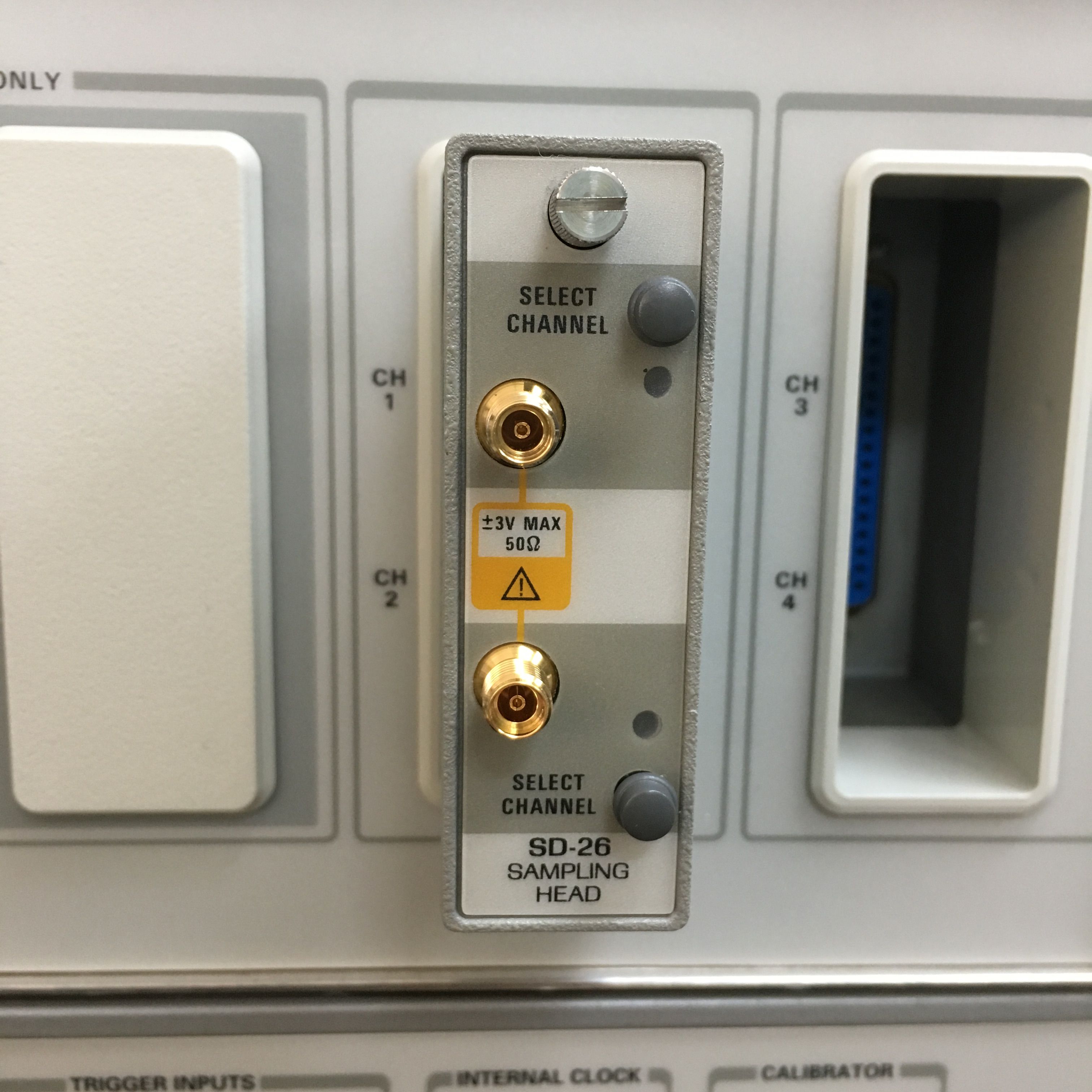

★SD-26 20GHz 2ch Sample Head 付
